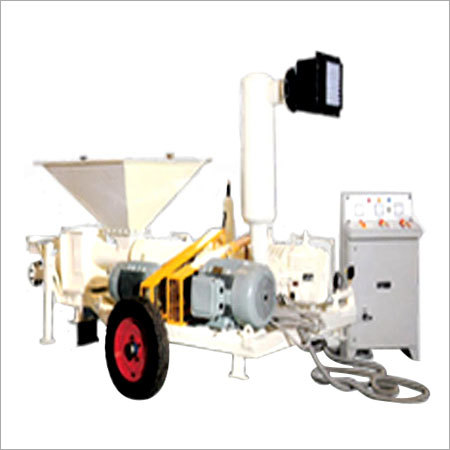

Pneumatic Cement Feeding System

Pneumatic Cement Feeding System
Pneumatic Cement Feeding System
Product Code : 01
Product Description

Pneumatic Cement Feeding System

Backed with rich experience and knowledge, we are considered to be one of the most professional manufacturers & exporters of Pneumatic Cement Feeding System. These cement feeding systems are widely used in cement industry. Our offered range of pneumatic feeding systems is widely renowned for its key features such as durability, easy installation and rust proof surface finish. Pneumatic Cement Feeding System is available in different specifications at negotiable prices in the market.



Further Details:

Pneumatic Cement Feeding System Umiya Screw Pumps are constructed of mild and structural steel, and mounted on a base. Umiya pumps are equipped with pedestal blocks that support a pump screw which helps to provide a smooth, balanced operation. The screw is dynamically balanced and areas of this screw, along with other parts of the pump in direct contact with the material to be conveyed, are made of hardened, wear-resistant material and special hard surfacing where required. The screw is directly coupled to the driving motor but can be v-belt driven.

MODEL - UMIYA -I & UMIYA-II DESCRIPTION It is the most versatile and speedy method of transferring bulk material from one point to another within a defined area. APPLICATIONS The Ritesh Screw Pumps are heavy-duty, screw-type pneumatic pumps. These pump systems are most commonly used to convey dry, free-flowing, pulverized materials from grinding mills, transfer materials from silo to silo, transfer dust from collectors, and load and unload railcars, ships and barges. The materials are conveyed literally anywhere a pipeline can be run and to any number of delivery points. OPERATION The materials to be conveyed enter the hopper by gravity or dumped by any means. The material is compacted as it is advanced.

Its density is further increased in the space between the terminal flight of the screw and the face of the non-return valve to form a seal against the transport line pressure, thus preventing blow back. The material then enters the discharge body, is fluidized by compressed air, and is conveyed into the transport line. FOLLOWING ACCESSORIES INCLUDED Suction Silencer Non Return Valve Discharge Silencer V-Belt Set Spring Loaded safety Valve V- Belt Guard Pressure gauge Drive Pulley Suction Filter Driven Pulley TECHNICAL SPECIFICATIONS SR. ITEM DESCRIPTION SPECIFICATION 01 Model Umiya-I Umiya-II 02 Output Capacity* 12-15 TON/HR 20-25 TON/HR 03 Feed Hopper Capacity 500 Kg 700 Kg 04 Screw TOUGH END 05 Screw Motor 22.5 kW / 30 HP 22.5 kW / 30 HP 06 Twin Lobe Air Blower PI-19 PI-22 07 Blower Motor 30 kW / 40 HP 37.5 kW / 50 HP 08 Structure WITH WHEEL/ANTI VIBRATION PAD WITH WHEEL/ANTI VIBRATION PAD 09 Power Supply 415 V AC + 10%, 3 PHASE, 50 HZ + 5%.



UMIYA INDUSTRIES
34, Sarjan Industrial Estate, Near Vishala Estate, Odhav, Nikol Ring Road, Ahmedabad - 382415, Gujarat, India
Mr. Maulik Dinkerbhai Patel (Proprietor)
